Carbide-Tipped Profile Shaper cutters TF502-Brazed T.C.T 4mm
Suitable for Four sides moulder. Round rod milling machine.
Carbide-Tipped Profile Shaper cutters TF502-Brazed T.C.T 4mm
- Brazed T.C.T thickness=4mm

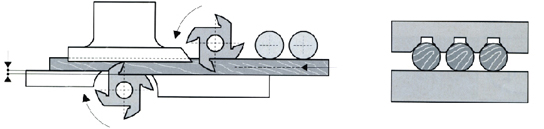

- Suitable for Four side moulders. Round rod milling machines.
- Special specifications is available as per custom's order.

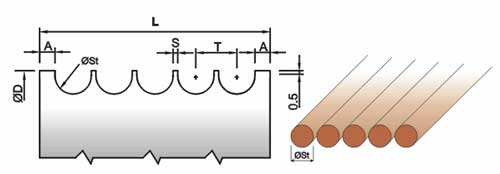

| Øst | ØD | B | Ød | S | T | A | Z |
| mm | mm | mm | |||||
| 4 | 100/130 | 75mm-150mm | 30/40 | 1 | 5 | 5 | 4 |
| 5 | 100/130 | 75mm-150mm | 30/40 | 1 | 6 | 5 | 4 |
| 6 | 100/130 | 75mm-150mm | 30/40 | 1 | 7 | 5 | 4 |
| 7 | 100/130 | 75mm-150mm | 30/40 | 1 | 8 | 5 | 4 |
| 8 | 100/130 | 75mm-150mm | 30/40 | 1 | 9 | 5 | 4 |
| 9 | 100/130 | 75mm-150mm | 30/40 | 1 | 10 | 5 | 4 |
| 10 | 110/130 | 75mm-150mm | 30/40 | 1.5 | 11.5 | 5 | 4 |
| 11 | 110/130 | 75mm-150mm | 30/40 | 1.5 | 12.5 | 5 | 4 |
| 12 | 110/130 | 75mm-150mm | 30/40 | 1.5 | 13.5 | 5 | 4 |
| 13 | 110/130 | 75mm-150mm | 30/40 | 1.5 | 14.5 | 5 | 4 |
| 14 | 110/130 | 75mm-150mm | 30/40 | 1.5 | 15.5 | 5 | 4 |
| 15 | 110/140 | 75mm-150mm | 30/40 | 1.5 | 16.5 | 5 | 4 |
| 16 | 110/140 | 75mm-150mm | 30/40 | 1.5 | 17.5 | 6 | 4 |
| 17 | 110/140 | 75mm-150mm | 30/40 | 1.5 | 18.5 | 6 | 4 |
| 18 | 110/140 | 75mm-150mm | 30/40 | 1.5 | 19.5 | 6 | 4 |
| 19 | 110/140 | 75mm-150mm | 30/40 | 1.5 | 20.5 | 6 | 4 |
| 20 | 110/140 | 75mm-150mm | 30/40 | 2 | 22 | 6 | 4 |
| 21 | 110/140 | 75mm-150mm | 30/40 | 2 | 23 | 6 | 4 |
| 22 | 110/140 | 75mm-150mm | 30/40 | 2 | 24 | 6 | 4 |
| 23 | 120/150 | 75mm-150mm | 30/40 | 2 | 25 | 6 | 4 |
| 24 | 120/150 | 75mm-150mm | 30/40 | 2 | 26 | 6 | 4 |
| 25 | 120/150 | 75mm-150mm | 30/40 | 2 | 27 | 6 | 4 |
| 26 | 120/150 | 75mm-150mm | 30/40 | 2 | 28 | 6 | 4 |
| 27 | 120/150 | 75mm-150mm | 30/40 | 2 | 29 | 6 | 4 |
| 28 | 120/150 | 75mm-150mm | 30/40 | 2 | 30 | 6 | 4 |
| 29 | 120/150 | 75mm-150mm | 30/40 | 2 | 31 | 6 | 4 |
| 30 | 120/150 | 75mm-150mm | 30/40 | 2 | 32 | 6 | 4 |
